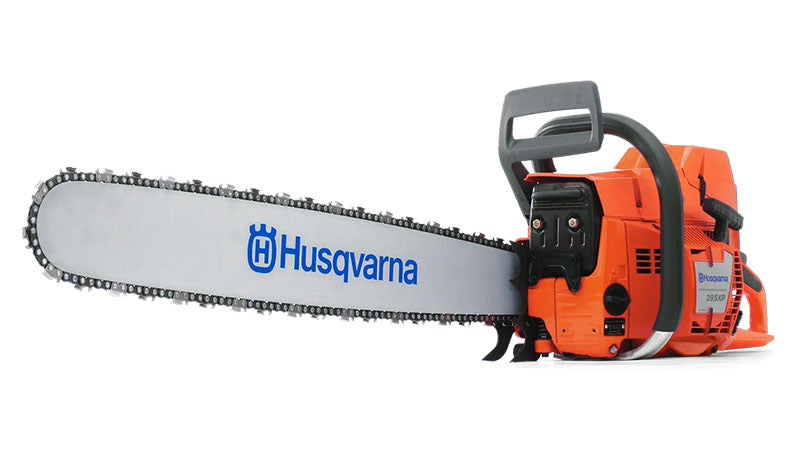

Husqvarna 965902737 395XP 24 Inch 94cc Chainsaw
Features for the Husqvarna 395XP
Air Injection®
Centrifugal air cleaning system removes larger dust and debris particles before reaching the air filter. This results in reduced air filter cleanings and improved engine life.
Adjustable oil pump
Allows you to control oil flow depending on application and weather conditions.
Quick-release air filter
Facilitates cleaning and replacement of the air filter.
Magnesium crankcase
Sturdily built crankcase withstands high rpms and tough professional use, ensuring a long service life.
Three-piece crankshaft
Forged three-piece crankshaft for maximum durability for the toughest applications.
LowVib®
System designed to reduce vibration levels to the operator, which lessens fatigue.
Smart Start®
The engine and starter have been designed so the machine starts quickly with minimum effort.
Front handle ergonomics
Better grip and a 7° offset handle reduces fatigue.
Felling marks
Distinct, colored marks used for aiming the direction of timber fall.
Inertia activated chain brake
Reduces the likelihood of injury due to kickback.
Specifications
Power output: 6.6 hp
Cylinder displacement: 94 cm³
Maximum power speed: 8,700 rpm
Max engine/motor RPM: 12,500 rpm
Idling speed: 2,500 rpm
Torque, max: 5.9 Nm
Torque, max. at rpm: 6,000 rpm
Clutch engagement speed (±120): 3,500 rpm
Fuel consumption: 470 g/kWh
Fuel consumption: 5.07 lbs/h
Spark plug: NGK BPMR7A, Champion RCJ6Y
Electrode gap: 0.02 in
Ignition module air gap: 0.01 in
Oil pump type: Automatic
Oil pump capacity Max: 20 ml/min
Oil pump capacity Min: 15 ml/min
Equipment
Bar length (inch): 24 in
Pitch: 3/8"
Sprocket type: Rim 7
Dimensions
Weight (excl. cutting equipment): 17.4 lbs.
Lubricant
Lubricant type: Husqvarna or equiv. at 50:1
Oil tank volume: 1.1 US pint
Sound and noise
Sound power level, guaranteed (LWA): 115 dB(A)
Sound power level, measured: 114 dB(A)
Sound pressure level at operator’s ear: 102 dB(A)
Vibrations
Equivalent vibration level (ahv, eq) front handle: 6.5 m/s²
Equivalent vibration level (ahv, eq) rear handle: 10.2 m/s²
