Description:

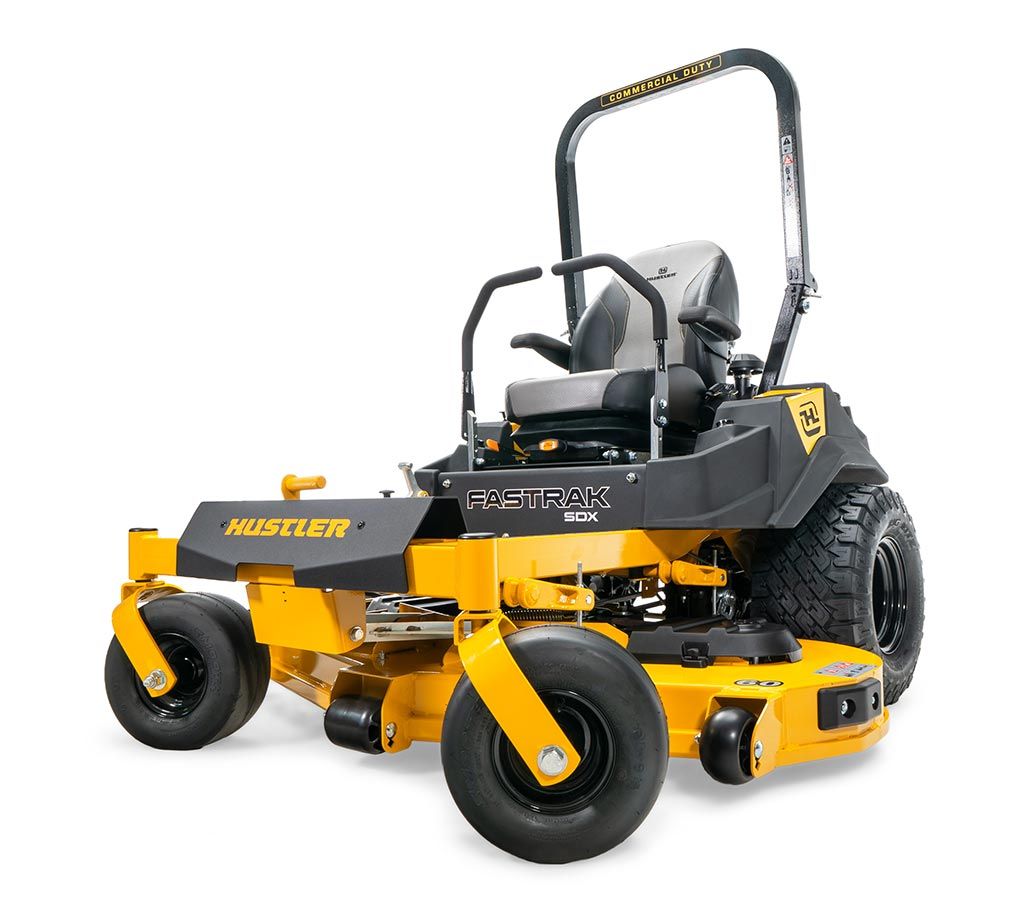

A commercial grade machine at the right price, the FasTrak SDX series ticks a lot of boxes for business owners who demand more from their zero turn mower.

Boasting a long 4 year commercial warranty, 48" fabricated steel deck, commercial grade Kawasaki V-Twin engine and strong Hydro-Gear ZT-3400 transmissions, the FasTrak SDX 48 offers plenty of bang for your bucks.

Safety is covered with standard roll over protection bar, while the seating position has been designed with operator comfort in mind.

The extra high back suspension seat with arm rests and well bolstered back cushion will have you stepping off fresh at the end of a long day!

The relatively small footprint for a commercial mower adds additional flexibility and access advantages compared to a larger machine, making this model suited to a wide variety of commercial mowing applications.

The FasTrak SDX 48 will comfortably fit on a standard 7" x 5" trailer, for easy transportation and site access.

Specifications:

Deck Width & Construction

• Deck Width: 48 inches
• Deck Construction: 10 gauge fabricated cutting deck

Blades & PTO

• Blades: 3 blades with electric PTO blade engagement

Spindles

• Spindles: Aluminum with 11 gauge spindle mounts, 1" shaft, and double lip sealed ball bearings

Cutting Height & Adjustment

• Cutting Height Range: 1.5" - 4.5" with foot-assisted deck height adjustment

Optional Extras

• Optional Mulch Kit
• Optional Catcher Kit

Productivity & Capability

• Ground Speed: 16 km/h (approximately 10 mph)
• Acres per Hour: 3.5 acres per hour (rating based on 80% efficiency for real-world mowing conditions)
• Fuel Tank Capacity: 32 liters (approximately 8.5 gallons)
• Slope Capability: Up to 15 degrees

Power & Drive Train

• Engine Type: 22HP Kawasaki FX691V Engine, air-cooled, 726cc
• Engine Warranty: 3-year engine warranty
• Transmission Type: Dual Hydro Gear ZT3400 Hydro Transmissions

Build & Chassis

• Country of Manufacture: Made in the USA
• Chassis Construction: 1.5" x 3" welded tubular steel frame
• Roll Over Protection: Standard Roll Over Protection Bar
• Rear Wheels & Tires: 23" x 9.5" rear tires
• Front Wheels & Tires: 13" x 6.5" front tires

Comfort & Convenience

• Seat Type: Extra high back suspension seat with armrests
• Console Features: Cup holder, automatic park brake
• Maintenance Access: Open rear design for easy engine maintenance
• Tow Hitch: Optional tow hitch

Dimensions

• Minimum Trailer Size: 5 ft wide, 7 ft long
• Length: 1948 mm (approximately 76.7 inches)
• Width (Chute up): 1270 mm (approximately 50 inches)
• Height (ROPS up & down):
• ROPS Up: 1745 mm (approximately 68.7 inches)
• ROPS Down: 1242 mm (approximately 48.9 inches)
• Weight: 413 kg (approximately 910 lbs)

Warranty

• Residential Warranty: 4 years / 1000 hours domestic warranty
• Commercial Warranty: 4 years / 1000 hours commercial warranty
